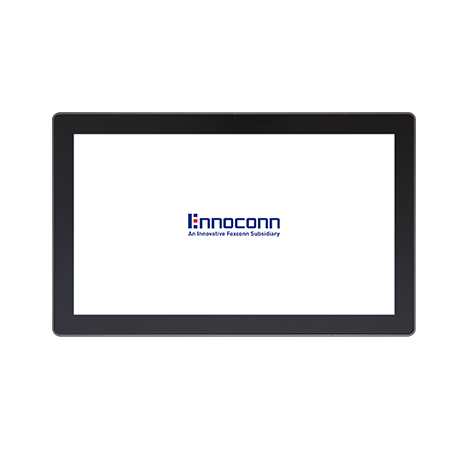

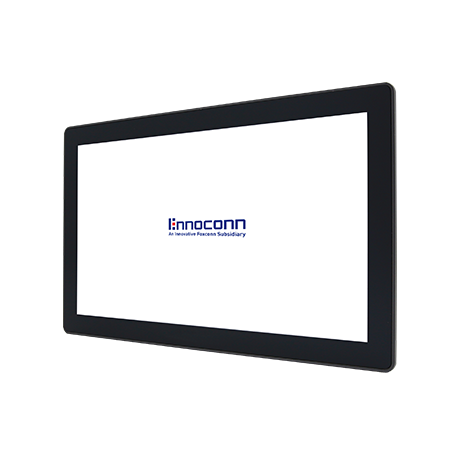

CEP-15PW-J19A 15.6寸工业平板电脑
工业无风扇触摸一体机,采用15.6" 全平面10点投射式电容屏,Intel BayTrail J1900平台。 15.6" 工业级液晶屏,16:9宽屏幕,500nits,整机采用Intel® Celeron® J1900 CPU,超薄设计,拥有强固、无风扇、防震、兼容性强等特性,可广泛应用于工业自动化、MES系统,嵌入式设备控制、自助设备控制终端等领域。
联系电话4000-818-298
联系客服
产品详情 产品特点 产品应用 相关下载 在线订购
规格 Specification
  系统 System
  处理器 Processor  Intel® Bay Trail Celeron® J1900 processor (2.00 GHz)
  内存 Memory  1 x DDR3L 1333/1600 SO-DIMM slot, up to 8GB
  存储 Storage  1 x 2.5" Drive Bay for SATA HDD/SSD
  1 x M.2 2242 (support SSD only)/1 x mSATA
  图形 Graphics  Intel® HD Graphics for Intel® Atom® Processor Z3700 Series
  操作系统 OS  Windows 7/8.1/10, Linux
  看门狗定时器 Watchdog Timer  Programmable 255 levels timer interval, from 1~255 sec/min

  触摸屏 Touchscreen
  触摸屏 Touch Type  10点投射式电容屏 P-cap Multi-Touch
  触击 Touch  35,000,000 times

  显示屏 Display
  尺寸 Size  15.6 inches
  分辨率 Resolution  1366 x 768
  屏幕宽高比 Ratio  16:9
  亮度 Brightness  500 nits
  可视区 Active Area  344.232 x193.536mm
  LCD尺寸 Dimension  363.8(W) x 215.98(H) x 9.3(D)mm
  可视角 Viewing Angle  CR ≥ 10; θx 160(H)/ θy 150° (V)
  对比度 Contrast Ratio  600
  色深 Display Color  16.7M
  像素 Pixel Pitch  0.252 (H) x 0.252 (V)
  背光 Backlight  LED Backlight
  背光寿命 Backlight Lifetime  50000Hrs
  功耗 Power Consumption  12.1W

  机构 Mechanical
  前框 Front Panel  铝 Aluminum
  铝挤 Heat-Sink  铝 Aluminum
  底板 Rear Cover  铁 SECC
  安装方式 Mounting  Panel Mount, Wall and VESA-mount (75 x 75mm)
  尺寸 Dimension  395 X 245.5 X 66mm
  建议开孔尺寸 Cut Out  387 x 237.5mm
  重量 Weight  3.5Kg

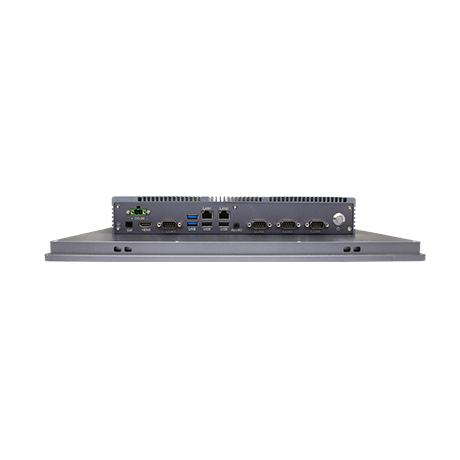

  外部接口 External I/O
  串口 COM  2 x RS232/RS422/RS485(COM1~2)
  2 x RS232(COM3 & COM4)
  USB  3 x USB 2.0, 1 x USB 3.0
  网口 Ethernet  2 x Intel®  I211AT GbE (10/100/1000 Mbps)
  显示 Video  1 x HDMI (up to 1920 x 1200)
  音频 Audio  1 x Audio (Line-out & Mic-in 2 in 1)
  远程开关 Remote ON-OFF  1 x Remote ON-OFF
  电源输入 Power Input  1 x Power Connector (2P   Phoenix)

  内部接口 Internal I/O
扩展接口 Expansion  1 x full-size Mini-PCIe Slot (Co-Lay with M.2_SSD)
  1 x M.2_SSD Slot(1 x SSD only)
  1 x M.2_Wifi Slot (Wifi only)
  1 x SIM Card Slot

电源 Power
电源输入 Power Input  9~36V DC

环境 Environment
操作温度 Operation Temp.  -10℃ ~ 60℃ (SSD),0℃ ~ 40℃   (HDD)
存储温度 Storage   Temp.  -40℃ ~ 70℃
湿度 Relative   Humidity  5% ~ 95%, 非凝结状态   Non-condensing
随机振动 Random   Vibration  5~500Hz, 1Grms   (HDD)operation, 5~500Hz, 2Grms (SSD)operation
正弦振动 Sine   Vibration  5~500Hz, 2G Non-operation
机械冲击 Shock10g 11ms operation, 30g   11ms Non-operation

认证 Certification
安规认证 Safety CertificationCCC , CE , FCC
