| 规格 Specification | ||
| 系统 System | ||
| 处理器 Processor | Intel® Bay Trail Celeron® J1900 processor (2.00 GHz) | |
| 内存 Memory | 1 x DDR3L 1333/1600 SO-DIMM slot, up to 8GB | |
| 存储 Storage | 1 x 2.5" Drive Bay for SATA HDD/SSD 1 x M.2 2242 (support SSD only)/1 x mSATA | |
| 图形 Graphics | Intel® HD Graphics for Intel® Atom® Processor Z3700 Series | |
| 操作系统 OS | Windows 7/8.1/10, Linux | |
| 看门狗定时器 Watchdog Timer | Programmable 255 levels timer interval, from 1~255 sec/min | |
| 触摸屏 Touchscreen | ||
| 触摸屏 Touch Type | 全平面五线电阻屏 5-Wire Resistive Touch | |
| 触击 Touch | 35,000,000 times | |
| 显示屏 Display | ||
| 尺寸 Size | 19 inches | |
| 分辨率 Resolution | 1280(H) x 1024(V) | |
| 屏幕宽高比 Ratio | 4:3 | |
| 亮度 Brightness | 250 nits | |
| 可视区 Active Area | 374.784(H) x 299.8272(V) | |
| LCD尺寸 Dimension | 396.0(H) × 324.0(V)× 9.9(D) | |
| 可视角 Viewing Angle | CR≥10,89°(H)/89°(V) ; | |
| 对比度 Contrast Ratio | 1000 | |
| 色深 Display Color | 16.7M | |
| 像素 Pixel Pitch | 0.0976(H) x 0.2928(V) | |
| 背光 Backlight | LED Backlight | |
| 背光寿命 Backlight Lifetime | 30000Hrs | |
| 功耗 Power Consumption | 11.55W | |
| 机构 Mechanical | ||
| 前框 Front Panel | 铝 Aluminum | |
| 铝挤 Heat-Sink | 铝 Aluminum | |
| 底板 Rear Cover | 铁 SECC | |
| 安装方式 Mounting | Panel Mount, Wall and VESA-mount (75 x 75mm) | |
| 尺寸 Dimension | 428.5(W) x 353.5(H) x 66(D)mm | |
| 建议开孔尺寸 Cut Out | 420.5 x 345.5mm | |
| 重量 Weight | 6.2kg | |

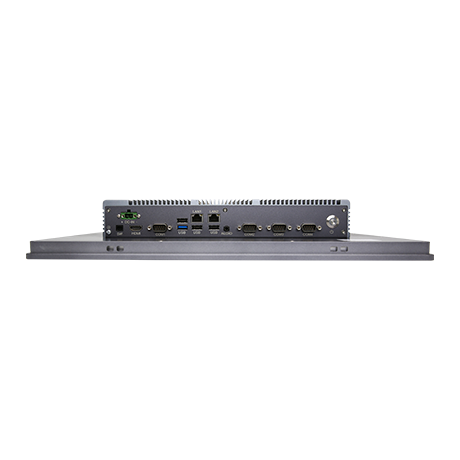

| 外部接口 External I/O | ||
| 串口 COM | 2 x RS232/RS422/RS485(COM1~2) 2 x RS232(COM3 & COM4) | |
| USB | 3 x USB 2.0, 1 x USB 3.0 | |
| 网口 Ethernet | 2 x Intel® I211AT GbE (10/100/1000 Mbps) | |
| 显示 Video | 1 x HDMI (up to 1920 x 1200) | |
| 音频 Audio | 1 x Audio (Line-out & Mic-in 2 in 1) | |
| 远程开关 Remote ON-OFF | 1 x Remote ON-OFF | |
| 电源输入 Power Input | 1 x Power Connector (2P Phoenix) | |
| 内部接口 Internal I/O | ||
| 扩展接口 Expansion | 1 x full-size Mini-PCIe Slot (Co-Lay with M.2_SSD) 1 x M.2_SSD Slot(1 x SSD only) 1 x M.2_Wifi Slot (Wifi only) 1 x SIM Card Slot | |
| 电源 Power | ||
| 电源输入 Power Input | 9~36V DC | |
| 环境 Environment | ||
| 操作温度 Operation Temp. | -10℃ ~ 50℃ (SSD), 0℃ ~ 40℃ (HDD) | |
| 存储温度 Storage Temp. | -40℃ ~ 70℃ | |
| 湿度 Relative Humidity | 5% ~ 95%, 非凝结状态 Non-condensing | |
| 随机振动 Random Vibration | 5~500Hz, 1Grms (HDD)operation, 5~500Hz, 2Grms (SSD)operation | |
| 正弦振动 Sine Vibration | 5~500Hz, 2G Non-operation | |
| 机械冲击 Shock | 10g 11ms operation, 30g 11ms Non-operation | |
| 认证 Certification | ||
| 安规认证 Safety Certification | CCC, CE, FCC | |
