| 规格 Specification | ||
| 系统 System | ||
| 处理器 Processor | Intel® 4th Gen. Core™ i3/i5/i7, Pentium®, Celeron® processor, LGA1150 Socket | |
| 芯片 Chipset | Intel® H81 Chipset | |
| 内存 Memory | DDR3-1333/1600MHz, 2 x DIMM Slot, up to 16GB | |
| 图形 Graphics | Intel® HD Graphics, dual display | |
| 存储 Storage | 1 x SATA 3.0, 2 x SATA 2.0 | |
| 操作系统 OS | Windows XP (limited function)/7/8/10, Linux | |

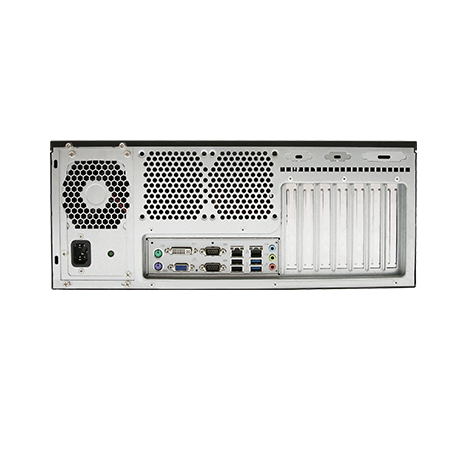

| 外部接口 External I/O | ||
| 网口 Ethernet | 2 x RJ45 Realtek® RTL8111G-CG GbE (10/100/1000 Mbps) | |
| 显示 Video | 1 x VGA: max resolution up to 2048 x 1536 1 x DVI: max resolution up to 1920 x 1200 | |
| 音频 Audio | 1 x Line-in, 1 x Line-out, 1 x Mic-in | |
| 串口 COM | 2 x RS232 | |
| USB | 2 x USB 3.0, 4 x USB 2.0 | |
| PS/2 | 2 x PS/2 (Keyboard and Mouse Supported) | |
| 按钮 Button | 1 x Power Button, 1 x Reset Button | |
| 指示灯 LED | 1 x Power LED, 1 x HDD LED | |
| 内部接口 Internal I/O | ||
| 扩展接口 Expansion | 1 x PCIe X 16 Slot, 1 x PCIe X 4 Slot, 1 x PCIe X 1 Slot, 4 x PCI Slot 1 x SIM Card Socket, 1 x Mini-PCIe | |
| 风扇 FAN | 1 x CPU Fan, 2 x System Fan | |
| GPIO | 1 x 8-bit GPIO | |
| LPT | 1 x LPT pin header | |
| USB | 4 x USB 2.0 pin header | |
| 音频 Audio | 1 x Front Audio pin header | |
| 串口 COM | 3 x RS232, 1 x RS485/232 | |
| SATA | 1 x SATA 3.0, 2 x SATA 2.0 | |
| 环境 Environmental | ||
| 操作温度 OperatingTemp. | 0℃ ~ 40℃ | |
| 存储温度 Storage Temp. | -20℃ ~ 60℃ | |
| 湿度 Relative Humidity | 5% ~ 95%, 非凝结状态Non-condensing | |
| 随机振动 Random Vibration | 5~500Hz, 1Grms (HDD)operation | |
| 正弦振动 Sine Vibration | 5~500Hz, 2G Non-operation | |
| 机械冲击 Shock | 10G@ 11ms operation | |
| 电源 Power | ||
| 电源输入 Power Input | 100~240V(AC) | |
| 电源功耗 Power Watt | 300W | |
| 机构Mechanical | ||
| 外观 Housing | SGCC | |
| 尺寸 Dimension | 455(L) x 427(W) x 178(H)mm | |
| 重量 Weight | 15kg(约) | |
| 安装方式 Mounting | 机柜式 (Rack-Mount) | |
| 认证Certification | ||
| 安规认证 Safety Certification | CCC | |
注明：
1.PCIE x4 slot信号为 PCIE x1，所以仅支持 PCIE x1 设备。
